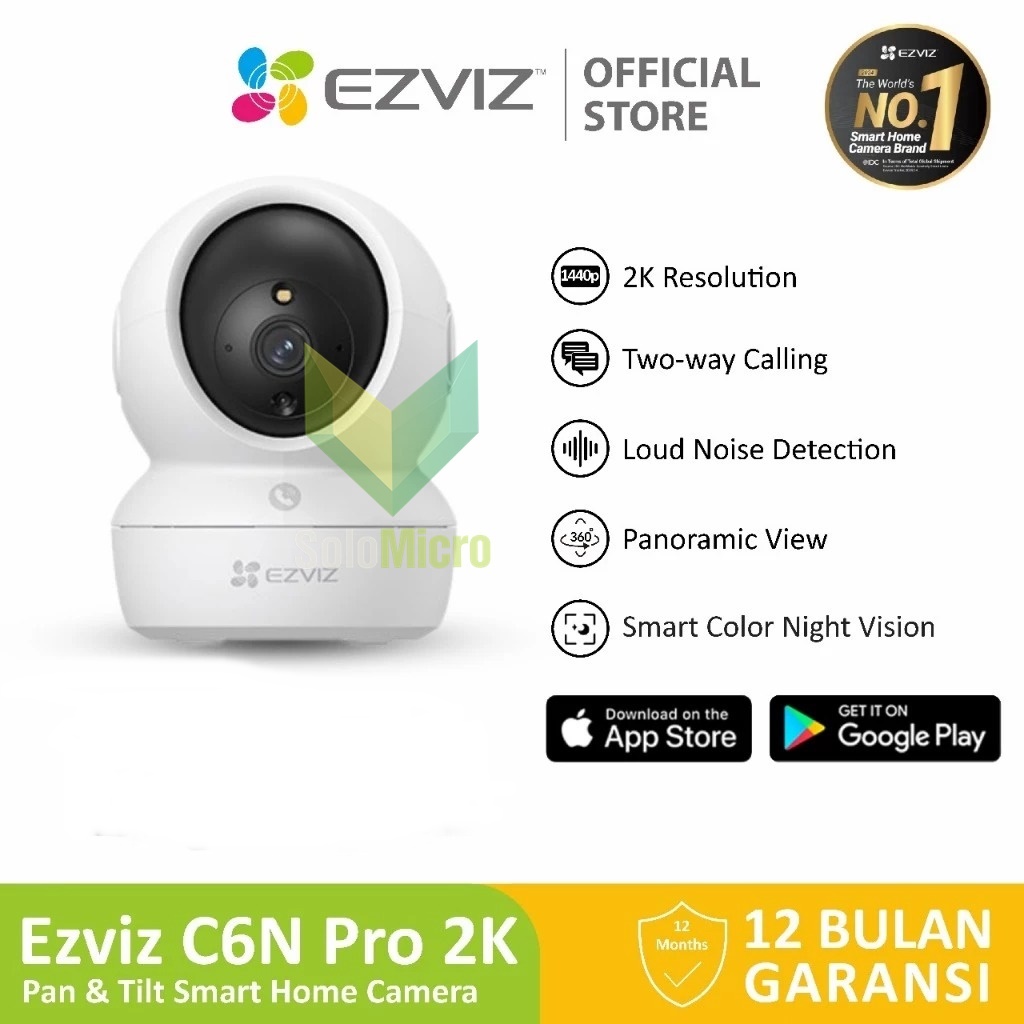

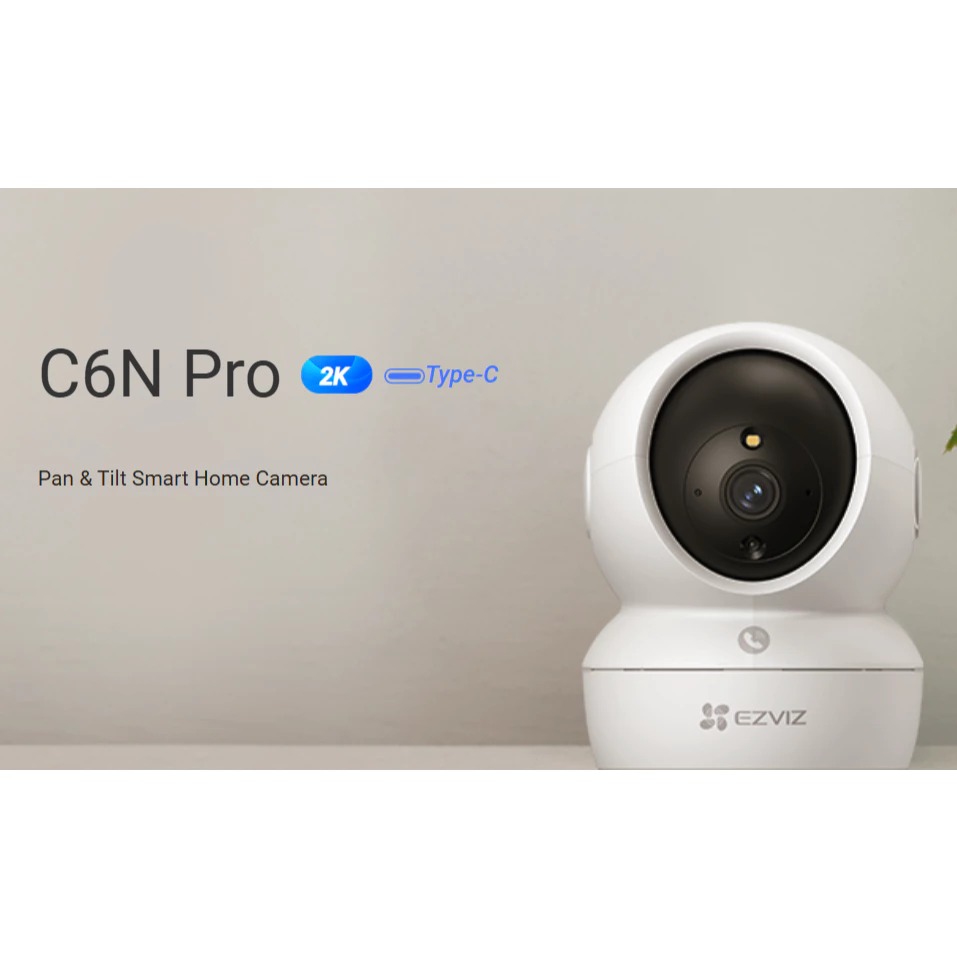

Ezviz C6N 3MP 2K Smart Wifi CCTV IP Cam Pan Tilt Camera

Model: CS-C6N-R105-1L3WF

Image sensor: 1/2.7" Progressive Scan CMOS

Shutter Speed; Self-adaptive shutter

Lens: 4mm @ F1.6, viewing angle: 82° (Horizontal), 48° (Vertical), 98° (Diagonal)

Lens Mount: M12

Day & Night: IR-cut filter with auto-switching

DNR: 3D DNR

WDR: Digital WDR

Compression

Video Compression: H.264/H.265

Video Bit Rate: H.264/H.265


Max. Resolution: 2304 × 1296

Frame Rate: Self-Adaptive during network transmission

Network

Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection

Wi-Fi Pairing: AP pairing

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Interface

Storage: Micro SD card slot (Max. 512G)

Power: TYPE-C

Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20MHz

Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps

Output Power(EIRP): 19 dBm

Antenna Gain: 1.9 dBi

General

Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply: DC 5V/1A

Power Consumption: Max. 5W

IR Range: Max. 10 m (33ft)

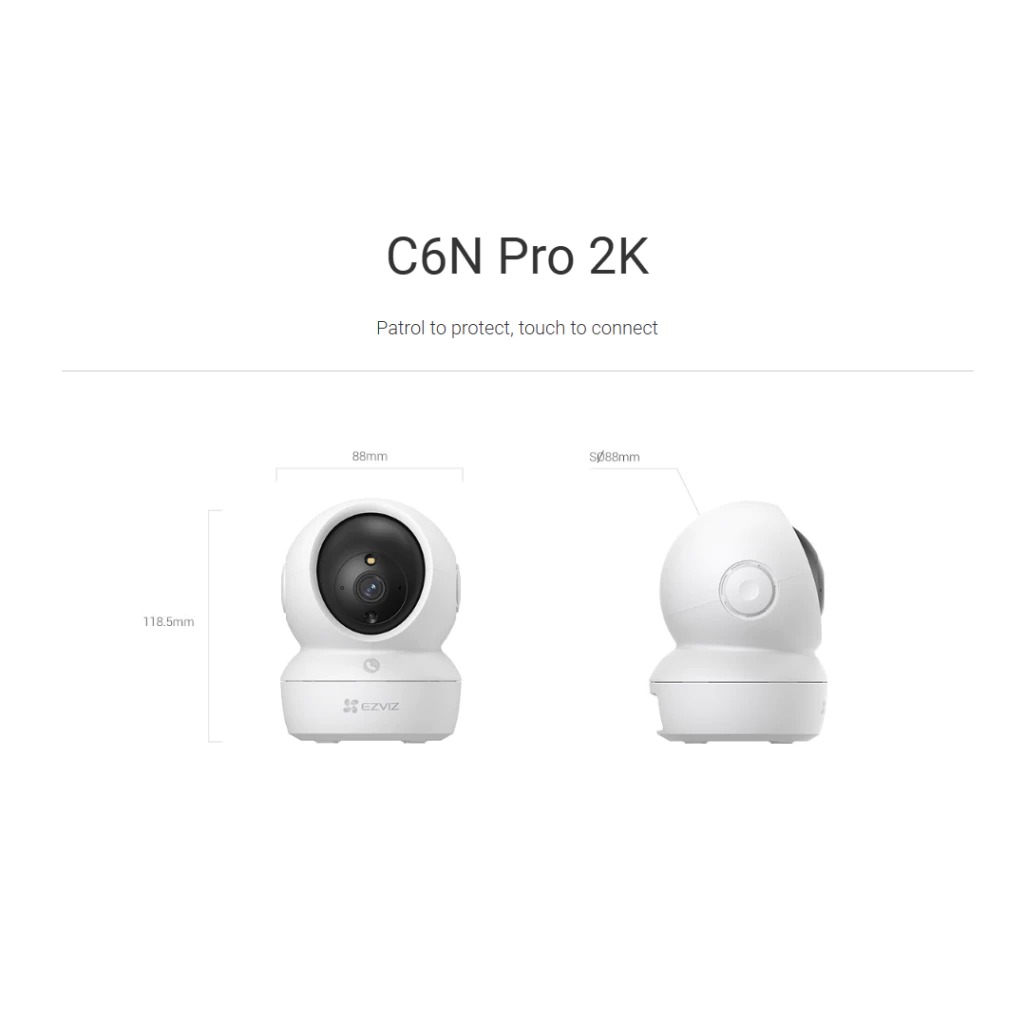

Dimensions: 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch)

Packaging Dimensions: 103 × 103 × 186 mm (4.06 × 4.06 × 6.61 inch)

Bare Weight: 218g (0.48lb)

In The Box:

- Camera

- Power Adapter

- Power Cable

- Drill Template

- Mounting Plate

- EZVIZ Screw Kit

- Regulatory Information

- Quick Start Guide
